# Form Field

There are a lots of form components built into the `model-form` to help you quickly build forms.

## Public methods

### Set the value to save

```php
$form->text('title')->value('text...');
```

### Set default value

```php
$form->text('title')->default('text...');
```

### Set help message

```php
$form->text('title')->help('help...');
```

### Set attributes of field element

```php
$form->text('title')->attribute(['data-title' => 'title...']);

$form->text('title')->attribute('data-title', 'title...');
```

### Set placeholder

```php
$form->text('title')->placeholder('Please input...');
```

### Set required

```php
$form->text('title')->required();
```

### Setting pattern

```php
$form->text('title')->pattern('[A-z]{3}');
```

### Setting readonly

```php
$form->text('title')->readonly();
```

### Setting disable

```php
$form->text('title')->disable();
```

### Setting autofocus

```php
$form->text('title')->autofocus();
```

### Model-form-tab

If the form contains too many fields, will lead to form page is too long, in which case you can use the tab to separate the form:

```php
$form->tab('Basic info', function ($form) {

    $form->text('username');
    $form->email('email');

})->tab('Profile', function ($form) {

   $form->image('avatar');
   $form->text('address');
   $form->mobile('phone');

})->tab('Jobs', function ($form) {

     $form->hasMany('jobs', function () {
         $form->text('company');
         $form->date('start_date');
         $form->date('end_date');
     });

  })
```

## Text input

```php
$form->text($column, [$label]);

// Add a submission validation rule
$form->text($column, [$label])->rules('required|min:10');

// Set FontAwesome icon
$form->text($column, [$label])->icon('fa-pencil');

// Set datalist
$form->text($column, [$label])->datalist(['key' => 'value']);

// Set inputmask, see https://github.com/RobinHerbots/Inputmask
$form->text('code')->inputmask(['mask' => '99-9999999']);
```

## Select

```php
$form->select($column[, $label])->options([1 => 'foo', 2 => 'bar', 'val' => 'Option name']);
```

If have too many options, you can load option by ajax:

```php
$form->select('user_id')->options(function ($id) {
    $user = User::find($id);

    if ($user) {
        return [$user->id => $user->name];
    }
})->ajax('/admin/api/users');
```

The controller method for api `/admin/api/users` is:

```php
public function users(Request $request)
{
    $q = $request->get('q');

    return User::where('name', 'like', "%$q%")->paginate(null, ['id', 'name as text']);
}
```

The json returned from api `/admin/demo/options`:

```javascript
{
    "total": 4,
    "per_page": 15,
    "current_page": 1,
    "last_page": 1,
    "next_page_url": null,
    "prev_page_url": null,
    "from": 1,
    "to": 3,
    "data": [
        {
            "id": 9,
            "text": "xxx"
        },
        {
            "id": 21,
            "text": "xxx"
        },
        {
            "id": 42,
            "text": "xxx"
        },
        {
            "id": 48,
            "text": "xxx"
        }
    ]
}
```

### Cascading select

`select` component supports one-way linkage of parent-child relationship:

```php
$form->select('province')->options(...)->load('city', '/api/city');

$form->select('city');
```

Where `load('city', '/api/city');` means that, after the current select option is changed, the current option will call the api `/api/city` via the argument`q` api returns the data to fill the options for the city selection box, where api `/api/city` returns the data format that must match:

```javascript
[
    {
        "id": 1,
        "text": "foo"
    },
    {
        "id": 2,
        "text": "bar"
    },
    ...
]
```

The code for the controller action is as follows:

```php
public function city(Request $request)
{
    $provinceId = $request->get('q');

    return ChinaArea::city()->where('parent_id', $provinceId)->get(['id', DB::raw('name as text')]);
}
```

## Multiple select

```php
$form->multipleSelect($column[, $label])->options([1 => 'foo', 2 => 'bar', 'val' => 'Option name']);
```

You can store value of multiple select in two ways, one is `many-to-many` relation.

```php
class Post extends Models
{
    public function tags()
    {
        return $this->belongsToMany(Tag::class);
    }
}

$form->multipleSelect('tags')->options(Tag::all()->pluck('name', 'id'));
```

The second is to store the option array into a single field. If the field is a string type, it is necessary to define [accessor and Mutator](https://laravel.com/docs/5.5/eloquent-mutators) for the field.

For example, the field `tags` is stored as a string and separated by a comma `,`, then its accessors and modifiers are defined as follows:

```php
class Post extends Model

    public function getTagsAttribute($value)
    {
        return explode(',', $value);
    }

    public function setTagsAttribute($value)
    {
        $this->attributes['tags'] = implode(',', $value);
    }
}
```

If have too many options, you can load option by ajax

```php
$form->select('user_id')->options(function ($id) {
    $user = User::find($id);

    if ($user) {
        return [$user->id => $user->name];
    }
})->ajax('/admin/api/users');
```

The controller method for api `/admin/api/users` is:

```php
public function users(Request $request)
{
    $q = $request->get('q');

    return User::where('name', 'like', "%$q%")->paginate(null, ['id', 'name as text']);
}
```

The json returned from api `/admin/demo/options`:

```javascript
{
    "total": 4,
    "per_page": 15,
    "current_page": 1,
    "last_page": 1,
    "next_page_url": null,
    "prev_page_url": null,
    "from": 1,
    "to": 3,
    "data": [
        {
            "id": 9,
            "text": "xxx"
        },
        {
            "id": 21,
            "text": "xxx"
        },
        {
            "id": 42,
            "text": "xxx"
        },
        {
            "id": 48,
            "text": "xxx"
        }
    ]
}
```

## Listbox

The usage is as same as mutipleSelect.

```php
$form->listbox($column[, $label])->options([1 => 'foo', 2 => 'bar', 'val' => 'Option name']);

// Set height
$form->listbox($column[, $label])->height(200);
```

## Textarea

```php
$form->textarea($column[, $label])->rows(10);
```

## Radio

```php
$form->radio($column[, $label])->options(['m' => 'Female', 'f'=> 'Male'])->default('m');

$form->radio($column[, $label])->options(['m' => 'Female', 'f'=> 'Male'])->default('m')->stacked();
```

## Checkbox

`checkbox` can store values in two ways, see[multiple select](https://me.khairu-aqsara.net/documentation/readme/en/model-form/pages/-MfBJZI0bdX1WPq6YHGK#Multiple%20select)

The `options()` method is used to set options:

```php
$form->checkbox($column[, $label])->options([1 => 'foo', 2 => 'bar', 'val' => 'Option name']);

$form->checkbox($column[, $label])->options([1 => 'foo', 2 => 'bar', 'val' => 'Option name'])->stacked();

// Setting options through closures
$form->checkbox($column[, $label])->options(function () {
    return [1 => 'foo', 2 => 'bar', 'val' => 'Option name'];
});

// If there are too many options, you can add a full checkbox to it.
$form->checkbox($column[, $label])->options([])->canCheckAll();
```

## Email input

```php
$form->email($column[, $label]);
```

## Password input

```php
$form->password($column[, $label]);
```

## URL input

```php
$form->url($column[, $label]);
```

## Ip input

```php
$form->ip($column[, $label]);
```

## Phone number input

```php
$form->mobile($column[, $label])->options(['mask' => '999 9999 9999']);
```

## Color selector

```php
$form->color($column[, $label])->default('#ccc');
```

## Time input

```php
$form->time($column[, $label]);

// Set the time format, more formats reference http://momentjs.com/docs/#/displaying/format/
$form->time($column[, $label])->format('HH:mm:ss');
```

## Date input

```php
$form->date($column[, $label]);

// Date format setting,more format please see http://momentjs.com/docs/#/displaying/format/
$form->date($column[, $label])->format('YYYY-MM-DD');
```

## Datetime input

```php
$form->datetime($column[, $label]);

// Set the date format, more format reference http://momentjs.com/docs/#/displaying/format/
$form->datetime($column[, $label])->format('YYYY-MM-DD HH:mm:ss');
```

## Time range select

`$startTime`、`$endTime`is the start and end time fields:

```php
$form->timeRange($startTime, $endTime, 'Time Range');
```

## Date range select

`$startDate`、`$endDate`is the start and end date fields:

```php
$form->dateRange($startDate, $endDate, 'Date Range');
```

## Datetime range select

`$startDateTime`、`$endDateTime` is the start and end datetime fields:

```php
$form->datetimeRange($startDateTime, $endDateTime, 'DateTime Range');
```

## Currency input

```php
$form->currency($column[, $label]);

// set the unit symbol
$form->currency($column[, $label])->symbol('￥');
```

## Number input

```php
$form->number($column[, $label]);

// set max value
$form->number($column[, $label])->max(100);

// set min value
$form->number($column[, $label])->min(10);
```

## Rate input

```php
$form->rate($column[, $label]);
```

## Image upload

Before use upload field, you must complete upload configuration, see [image/file upload](https://app.gitbook.com/en/model-form-upload.md).

You can use compression, crop, add watermarks and other methods, please refer to \[[Intervention](http://image.intervention.io/getting_started/introduction)], picture upload directory in the file `config / admin.php` `Upload.image` configuration, if the directory does not exist, you need to create the directory and open write permissions:

```php
$form->image($column[, $label]);

// Modify the image upload path and file name
$form->image($column[, $label])->move($dir, $name);

// Crop picture
$form->image($column[, $label])->crop(int $width, int $height, [int $x, int $y]);

// Add a watermark
$form->image($column[, $label])->insert($watermark, 'center');

// add delete button
$form->image($column[, $label])->removable();

// Keep pictures when deleting data
$form->image($column[, $label])->retainable();
```

Generate thumbnails after uploading images

```php
// Generate thumbnails while uploading images
$form->image($column[, $label])->thumbnail('small', $width = 300, $height = 300);

// Or multiple thumbnails
$form->image($column[, $label])->thumbnail([
    'small' => [100, 100],
    'small' => [200, 200],
    'small' => [300, 300],
]);
```

Use thumbnails in models

```php
class Photo extends Model
{
    use \Ezadev\Admin\Traits\Resizable;
}

// To access thumbnail
$photo->thumbnail('small', 'photo_column');
```

## File upload

Before use upload field, you must complete upload configuration, see [image/file upload](https://app.gitbook.com/en/model-form-upload.md).

The file upload directory is configured in `upload.file` in the file `config/admin.php`. If the directory does not exist, it needs to be created and write-enabled.

```php
$form->file($column[, $label]);

// Modify the file upload path and file name
$form->file($column[, $label])->move($dir, $name);

// And set the upload file type
$form->file($column[, $label])->rules('mimes:doc,docx,xlsx');

// add delete button
$form->file($column[, $label])->removable();

// Keep files when deleting data
$form->file($column[, $label])->retainable();

// Add a download button, click to download
$form->file($column[, $label])->downloadable();
```

## Multiple image/file upload

```php
// multiple image
$form->multipleImage($column[, $label]);

// multiple file
$form->multipleFile($column[, $label]);

// add delete button
$form->multipleFile($column[, $label])->removable();

// Draggable sort
$form->multipleImage('pictures')->sortable();
```

The type of data submitted from multiple image/file field is array, if you the type of column in mysql table is array, or use mongodb, then you can save the array directly, but if you use string type to store the array data ,you need to specify a string format, For example, if you want to use json string to store the array data, you need to define a mutator for the column in model mutator, such as the field named `pictures`, define mutator:

```php
public function setPicturesAttribute($pictures)
{
    if (is_array($pictures)) {
        $this->attributes['pictures'] = json_encode($pictures);
    }
}

public function getPicturesAttribute($pictures)
{
    return json_decode($pictures, true);
}
```

Of course, you can also specify any other format.

## Map

> The map component has been deprecated and will be removed in a later release. Please use [Latitude and longitude selector plugin extension](https://github.com/Ezadev-admin-extensions/latlong) instead.

The map field refers to the network resource, and if there is a problem with the network refer to [form Component Management](https://app.gitbook.com/en/model-form-field-management.md) to remove the component.

Used to select the latitude and longitude, `$ latitude`,`$ longitude` for the latitude and longitude field, using Tencent map when `locale` set of laravel is`zh_CN`, otherwise use Google Maps:

```php
$form->map($latitude, $longitude, $label);

// Use Tencent map
$form->map($latitude, $longitude, $label)->useTencentMap();

// Use google map
$form->map($latitude, $longitude, $label)->useGoogleMap();
```

## Slider

Can be used to select the type of digital fields, such as age:

```php
$form->slider($column[, $label])->options(['max' => 100, 'min' => 1, 'step' => 1, 'postfix' => 'years old']);
```

More options please ref to <https://github.com/IonDen/ion.rangeSlider#settings>

## Rich text editor

The editor field refers to the network resource, and if there is a problem with the network refer to [form Component Management](https://app.gitbook.com/en/model-form-field-management.md) to remove the component.

```php
$form->editor($column[, $label]);
```

## Hidden field

```php
$form->hidden($column);
```

## Switch

`On` and `Off` pairs of switches with the values `1` and`0`:

```php
$states = [
    'on'  => ['value' => 1, 'text' => 'enable', 'color' => 'success'],
    'off' => ['value' => 0, 'text' => 'disable', 'color' => 'danger'],
];

$form->switch($column[, $label])->states($states);
```

## Display field

Only display the fields and without any action:

```php
$form->display($column[, $label]);
```

## Divider

```php
$form->divider();

// OR

$form->divider('Title');
```

## Html

insert html,the argument passed in could be objects which impletements `Htmlable`、`Renderable`, or has method `__toString()`

```php
$form->html('html contents');
```

## Tags

Insert the comma (,) separated string `tags`

```php
$form->tags('keywords');
```

## Icon

Select the `font-awesome` icon.

```php
$form->icon('icon');
```

## Timezone

```php
$form->timezone('timezone');
```

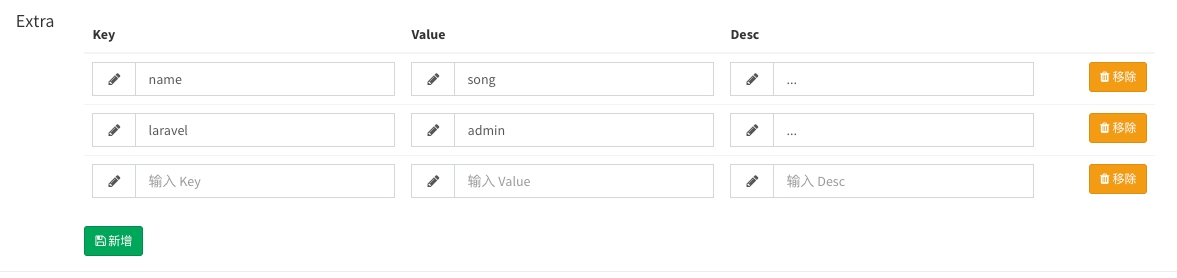

## table

![WX20190505-124413](https://user-images.githubusercontent.com/1479100/57188574-8a8ca880-6f33-11e9-8e64-6dc44976cf68.png)

If a field stores a two-dimensional array in the `json` format, you can use the `table` form component to implement fast editing:

```
$form->table('extra', function ($table) {
    $table->text('key');
    $table->text('value');
    $table->text('desc');
});
```

Also add accessor and mutator to this field in the model:

```php
    Public function getExtraAttribute($extra)
    {
        Return array_values(json_decode($extra, true) ?: []);
    }

    Public function setExtraAttribute($extra)
    {
        $this->attributes['extra'] = json_encode(array_values($extra));
    }
```

This component is similar to the `hasMany` component, but is used to handle a single field, suitable for simple two-dimensional data.

## HasMany

One-to-many built-in tables for dealing with one-to-many relationships. Here is a simple example:

There are two tables are one-to-many relationship:

```sql
CREATE TABLE `demo_painters` (
  `id` int(10) unsigned NOT NULL AUTO_INCREMENT,
  `username` varchar(255) COLLATE utf8_unicode_ci NOT NULL,
  `bio` varchar(255) COLLATE utf8_unicode_ci NOT NULL,
  `created_at` timestamp NOT NULL DEFAULT '0000-00-00 00:00:00',
  `updated_at` timestamp NOT NULL DEFAULT '0000-00-00 00:00:00',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_unicode_ci;

CREATE TABLE `demo_paintings` (
  `id` int(10) unsigned NOT NULL AUTO_INCREMENT,
  `painter_id` int(10) unsigned NOT NULL,
  `title` varchar(255) COLLATE utf8_unicode_ci NOT NULL,
  `body` text COLLATE utf8_unicode_ci NOT NULL,
  `completed_at` timestamp NOT NULL DEFAULT '0000-00-00 00:00:00',
  `created_at` timestamp NOT NULL DEFAULT '0000-00-00 00:00:00',
  `updated_at` timestamp NOT NULL DEFAULT '0000-00-00 00:00:00',
  PRIMARY KEY (`id`),
  KEY painter_id (`painter_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_unicode_ci;
```

The model of tables are:

```php
<?php

namespace App\Models\Demo;

use Illuminate\Database\Eloquent\Model;

class Painter extends Model
{
    public function paintings()
    {
        return $this->hasMany(Painting::class, 'painter_id');
    }
}

<?php

namespace App\Models\Demo;

use Illuminate\Database\Eloquent\Model;

class Painting extends Model
{
    protected $fillable = ['title', 'body', 'completed_at'];

    public function painter()
    {
        return $this->belongsTo(Painter::class, 'painter_id');
    }
}
```

Build the form code as follows:

```php
$form->display('id', 'ID');

$form->text('username')->rules('required');
$form->textarea('bio')->rules('required');

$form->hasMany('paintings', function (Form\NestedForm $form) {
    $form->text('title');
    $form->image('body');
    $form->datetime('completed_at');
});

$form->display('created_at', 'Created At');
$form->display('updated_at', 'Updated At');
```

## Embeds

Used to handle the `JSON` type field data of `mysql` or `object` type data of `mongodb`, or the data values of multiple fields can be stored in the form of the`JSON` string in the character type of mysql

Such as the `extra` column of the `JSON` or string type in the orders table, used to store data for multiple fields:

```php
class Order extends Model
{
    protected $casts = [
        'extra' => 'json',
    ];
}
```

And then use in the form:

```php
$form->embeds('extra', function ($form) {

    $form->text('extra1')->rules('required');
    $form->email('extra2')->rules('required');
    $form->mobile('extra3');
    $form->datetime('extra4');

    $form->dateRange('extra5', 'extra6', 'Date range')->rules('required');

});

// Customize the title
$form->embeds('extra', 'Extra', function ($form) {
    ...
});
```

Callback function inside the form element to create the method call and the outside is the same.

## List

A one-dimensional array used to set the JSON format:

```php
$form->list('list');

/ / Set the verification rules
$form->list('list')->rules('required|min:5'));

// set the maximum and minimum number of elements
$form->list('list')->max(10)->min(5);
```

In the model you need to set the json cast of this field:

```php
     Protected $casts = [
         'list' => 'json',
     ];
```

## KeyValue

Used to set the `key-value` array in JSON format:

```php
$form->keyValue('kv');

/ / Set the verification rules
$form->keyValue('kv')->rules('required|min:5'));
```

In the model you need to set the json cast of this field:

```php
     Protected $casts = [
         'kv' => 'json',
     ];
```


---

# Agent Instructions: Querying This Documentation

If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question.

Perform an HTTP GET request on the current page URL with the `ask` query parameter:

```
GET https://me.khairu-aqsara.net/documentation/readme/en/model-form/model-form-fields.md?ask=<question>
```

The question should be specific, self-contained, and written in natural language.
The response will contain a direct answer to the question and relevant excerpts and sources from the documentation.

Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
